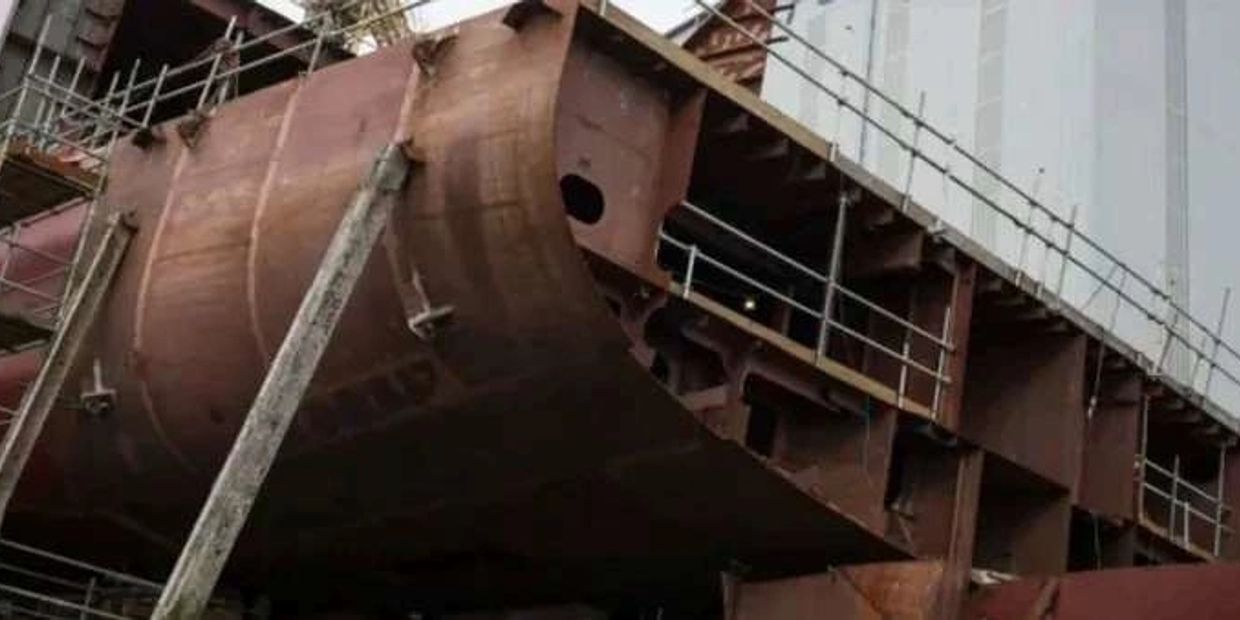

SHIPYARD HUGE GANTRY ROBOTIC WELDING
Shipyard Robotic Applications AII parts manufactured in the
SHIPYARD HEAVYINDUSTRY 16_ROBOTS PORTAL MIG MAG WELDING 30m_10m_2x6m
136M X36M DECK PLASMA CUTTING&WELDING
Plasma cutting, subway weld, mıg mag weld, laser scan, image process Plazma kesme, metro kaynağı, MIGMAG kaynağı, lazer tarama, görüntü işleme.
Layout dame is 1mX1m
Lifting Payload Welding components; 2000TON metric, 136Meter longitudinally ta 36Meter width, 12 M heigh
Stiffness: L/2000 Repeabilitry +-4mm
8 piesces; FANUC ARC Mate 710iC/20L.
8pieces; Wenglor Wision Laser Seam Tracking Camera 32 external axis, 4.SKW, Naptesco Cyloid Reduktor.
8 piesces; KOLARC KM 600 W XPULSE MIG MAG Welding Machine 8 pieces; KJELLBERG Hifocus 600i PGV Plasma Cutting,
8 pieces; KJELLBERG 1600 Amper Subway welding machine, Gantry Weight : 780TON metric,
Concrete 8S100 Bech.
1.6mm, 2m/s Solidstate welding WireSpeed FANUC ArcMate-1 00iD-8L A CLASS GABiN
LINCOLN POWER WAVE® S700 WELDING MACHINE
10KW (8600kcal/h) Cooling Chiller
TBI _Torch, Touch Sensor, Crash Sensor TBI BRG-2 Torch Cleanning Units
META VISION TRACKING CAMERA
TKH Lineer Bearing Guide WMH Herıon RACK GEAR
SHIPYARD HEAVYINDUSTRY 16_ROBOTS PORTAL MIG MAG WELDING 30m_l0m_2x6m
2018 RBTCS Makina İIMAL. SAN. TIC. LTD. STI. Tüm HaklarSaklIdIr.
Download RBTCS SHIPYARD HEAVYINDUSTRY ROBOTS WELDING
